Flojet Air Operated Pump - 100 PSI/26.5 LPM

The Flojet Air Operated Pump is a robust, self-priming and Santoprene diaphragm pump featuring a large exhaust silencer for quiet operation.

The pump has a flow rate of 26.5 litres per minute, a pressure rate of 100PSI and will be undamaged if it runs dry. Made with a resistance to corrosion, the pump is built to last.

Benefit & Features

• Can run-dry and handle liquids up to 49ºC

• Capable of passing solids up to 3.2mm diameter

• Corrosion resistant sanitary design

• Shuttle valve eliminates stalling

• Ease of installation with all quick disconnect ports

• ‘O’ Rings: EPDM

• Diaphragm and Valves: Santoprene

• Connections: Fluid - 13mm (1/2”) Straight hose barb,  Air - 6mm (1/4") hose

• Flow Rate: Up to 26.5L/min

• Self-priming up to 4.5m

• Max. Air Supply Pressure: 100PSI (6.9 bar)

• Actual Weight: 0.68 kg (Approx. 0.93kg packed)

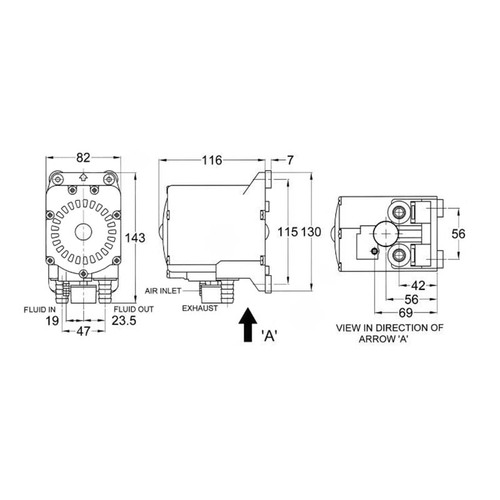

• Dimensions: 116mm(l) x 82mm(w) x 115mm(h)

Click here for the Manual
