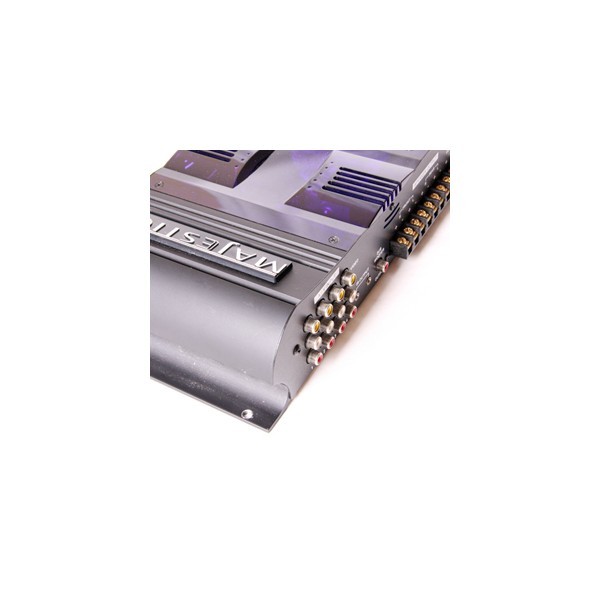

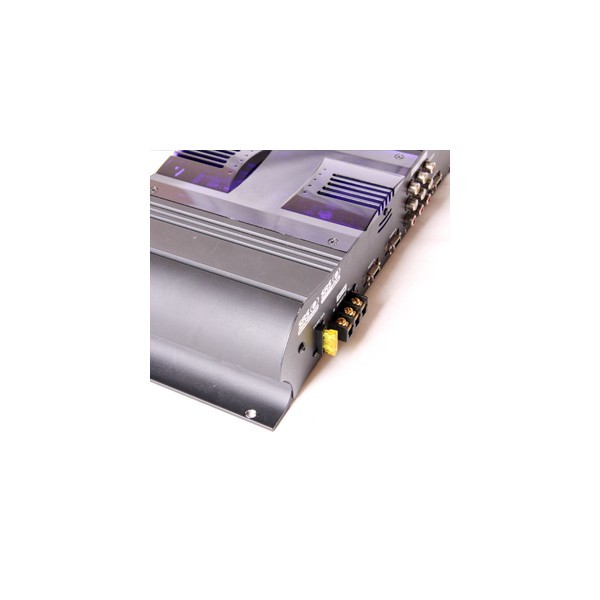

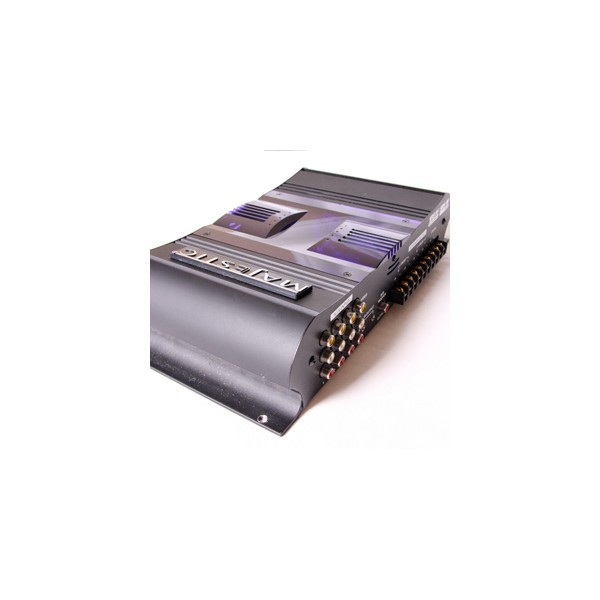

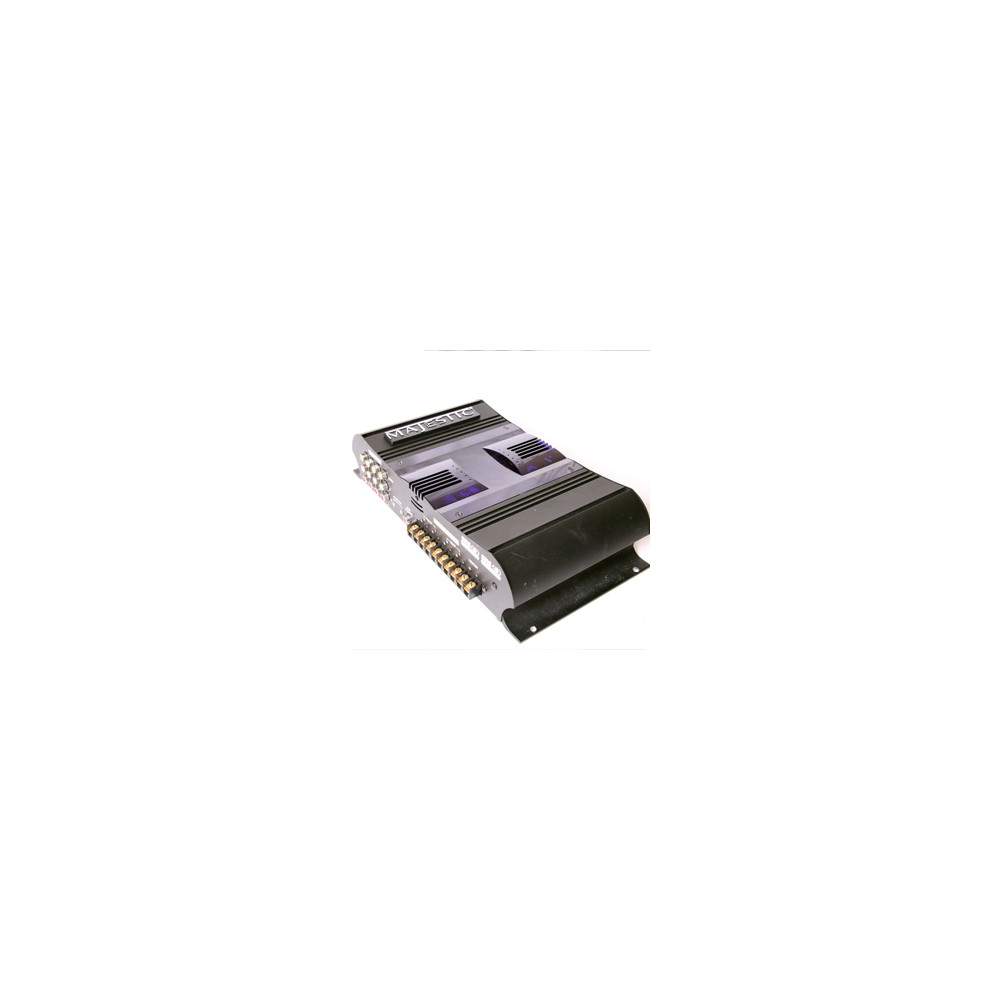

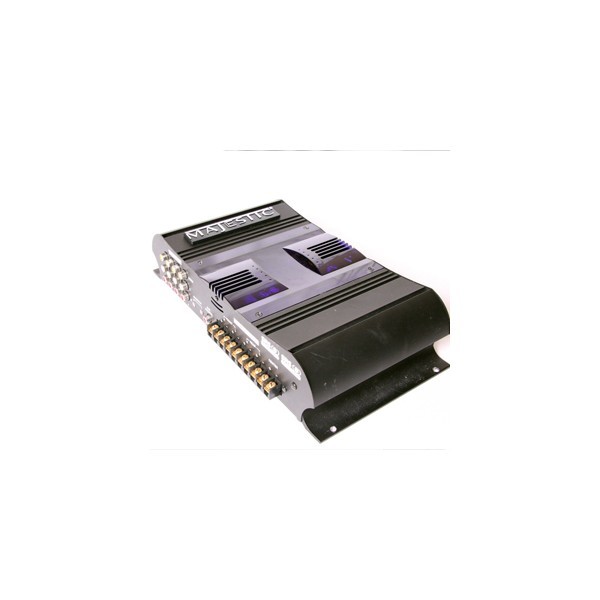

Majestic Amplifier 5.1 Channel with Multizone 12V

The AMP5145 has been designed to make your system much more effective. Simply connect your various devices to the Amplifier, such as DVD, Video or Satellite TV through the composite A/V connections. Then install up to 3 TV's in various locations and connect the composite A/V from the AMP to the TV's. Then wire in 4 speakers for surround sound, add a centre speaker and Subwoofer (through a Sub Amp - not supplied) and then lets get the party started.

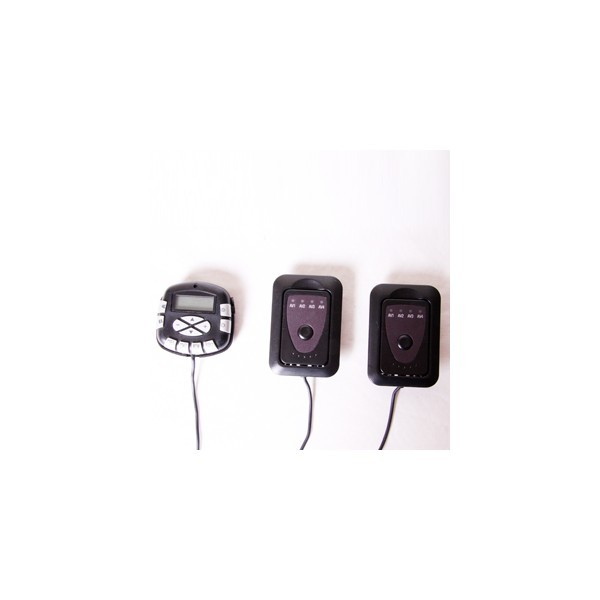

Each TV location will have a switcher to select which input you want to watch (any on of the four inputs being fed into the Amplifier). The Main saloon will have 5.1 Channel Master remote to allow control of the digital surround sound.

The AMP5145 is the main hub of you entertainment system.

Dimensions HxWxD With Stand

33 x 19 x 7 (cm)

Benefits And Features

• 4x A/V Input
• 3x A/V Outputs
• 5.1 Channel Output (Subwoofer - preout)
• Output Power:
• 4x 40W, 1x 20W (Center), Sub
• Voltage Range
• 10V to 16V DC
• Watts Used @ 12Volts
• 90W Average
• Weight
• 3.1 Kg
